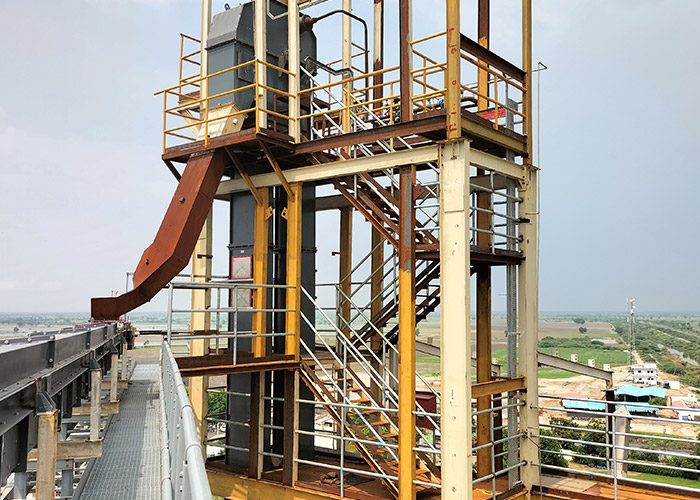

Bucket Elevators

Positive Discharge Bucket Elevators

Positive Discharge Bucket Elevators

Deep Buckets connected to single strand Chain in vertical orientation driven by a Top Sprocket bigger than Sectioning Sprocket for Positive Discharge of materials from the Buckets. Positive Discharge Elevators are similar to the centrifugal discharge type,...

Single and Double Chain Bucket Elevators

Single and Double Chain Bucket Elevators

Deep Buckets connected to single or Double strand Chain in vertical orientation driven by a Top Sprocket for initiating Centrifugal or Positive Discharge of materials within the Bucket. Applications: Vertical Elevating Silo Filling Effective Sizes: From...

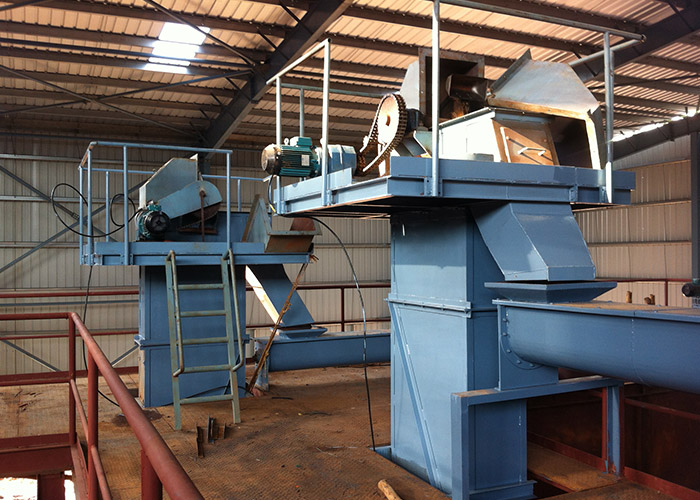

Belt Bucket Elevators

Belt Bucket Elevators

Deep Buckets fastened to a Carcass Belt in vertical orientation driven by a Top Drive Drum and Bottom Tensioning Drum. Applications: Vertical Elevating Silo Filling Effective Sizes: From 250mm to 900mm Wide Equipment Type: Belt Bucket Elevator Industries...

Z Shaped Elevators

Z Shaped Elevators

Deep Buckets connected to a Double strand Chain in a continous array for a ‘Z’ type orinetation of equipement with guide sprockets for maintaining chain path. Applications: Vertical Elevating Silo Filling Effective Sizes: From 250mm to 900mm Wide Equipment...

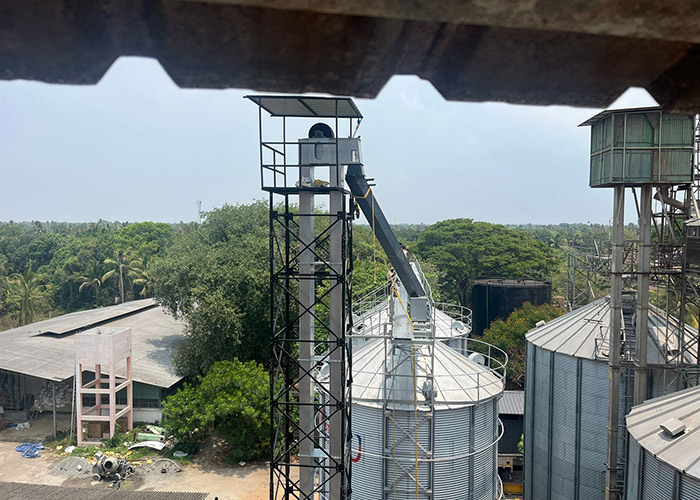

Inclined Bucket Elevators

Inclined Bucket Elevators

Deep Buckets connected to Double strand Chain in an Inclined orientation for Heavy Loads driven by a Top Sprocket for initiating Positive Discharge of materials within the Bucket. Continuous bucket elevators are recommended for large capacity heavy-duty...

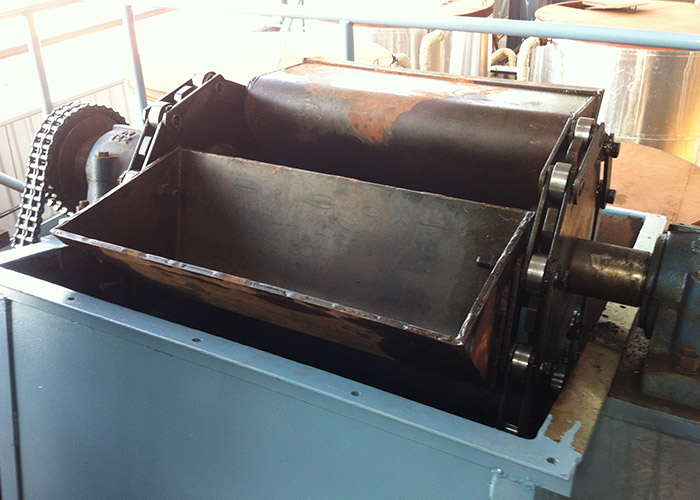

Bucket Elevators: Parts, components & spares

Buckets, Chains, Sprockets, Tensioning, Drive Units as spares. Capacity upto 150m3 / Hr. and 30m lift vertical / inclined having MS / SS / Polypropylene buckets. a) Centrifugal discharge both chain and belt type. b) Positive discharge chain type. c)...

Centrifugal Bucket Elevators

Centrifugal Bucket Elevators

Deep Buckets connected to single strand Chain in vertical orientation driven by a Top Sprocket at High Speed for initiating Centrifugal Discharge of materials within the Bucket. Centrifugal discharge elevators are the most frequently used type for...
